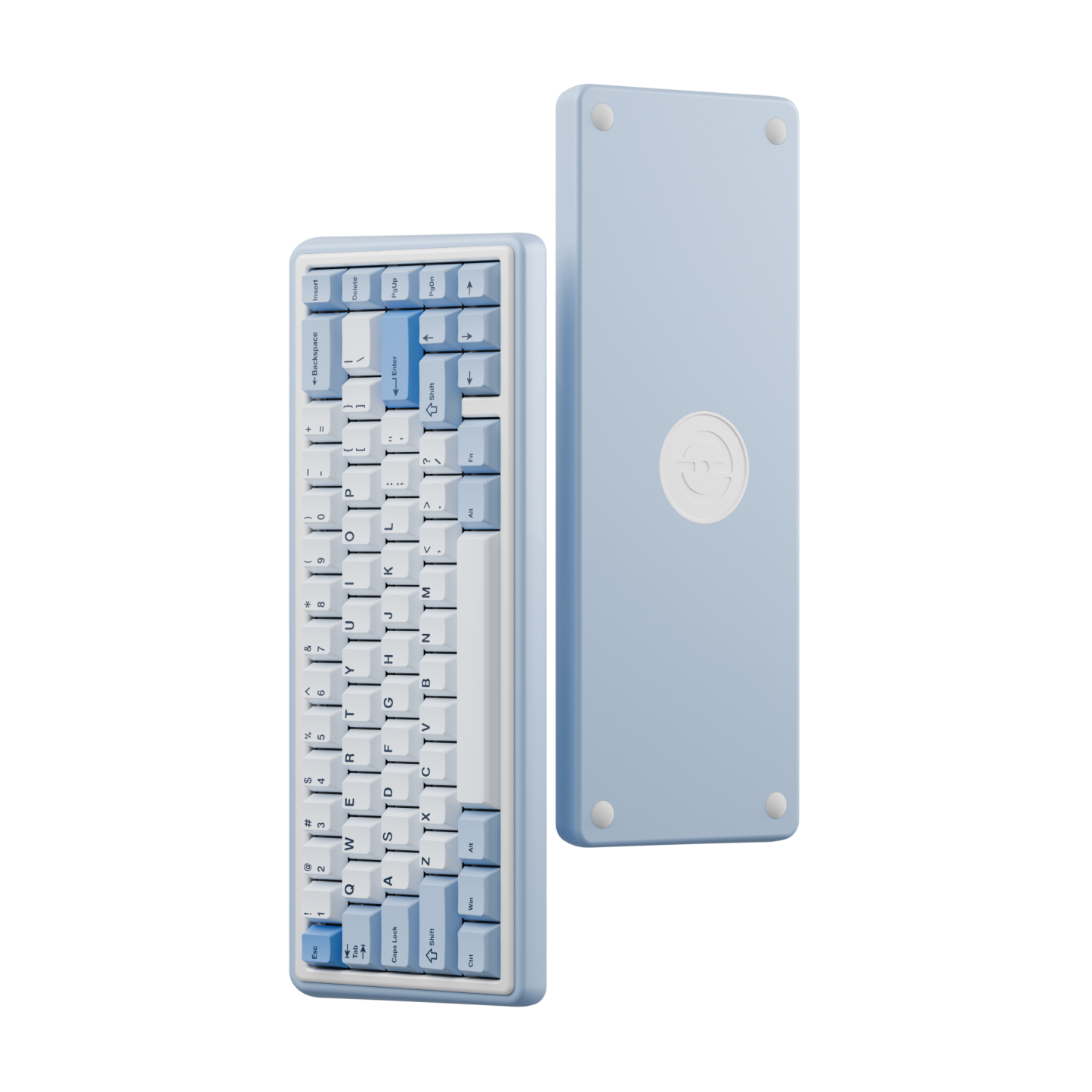

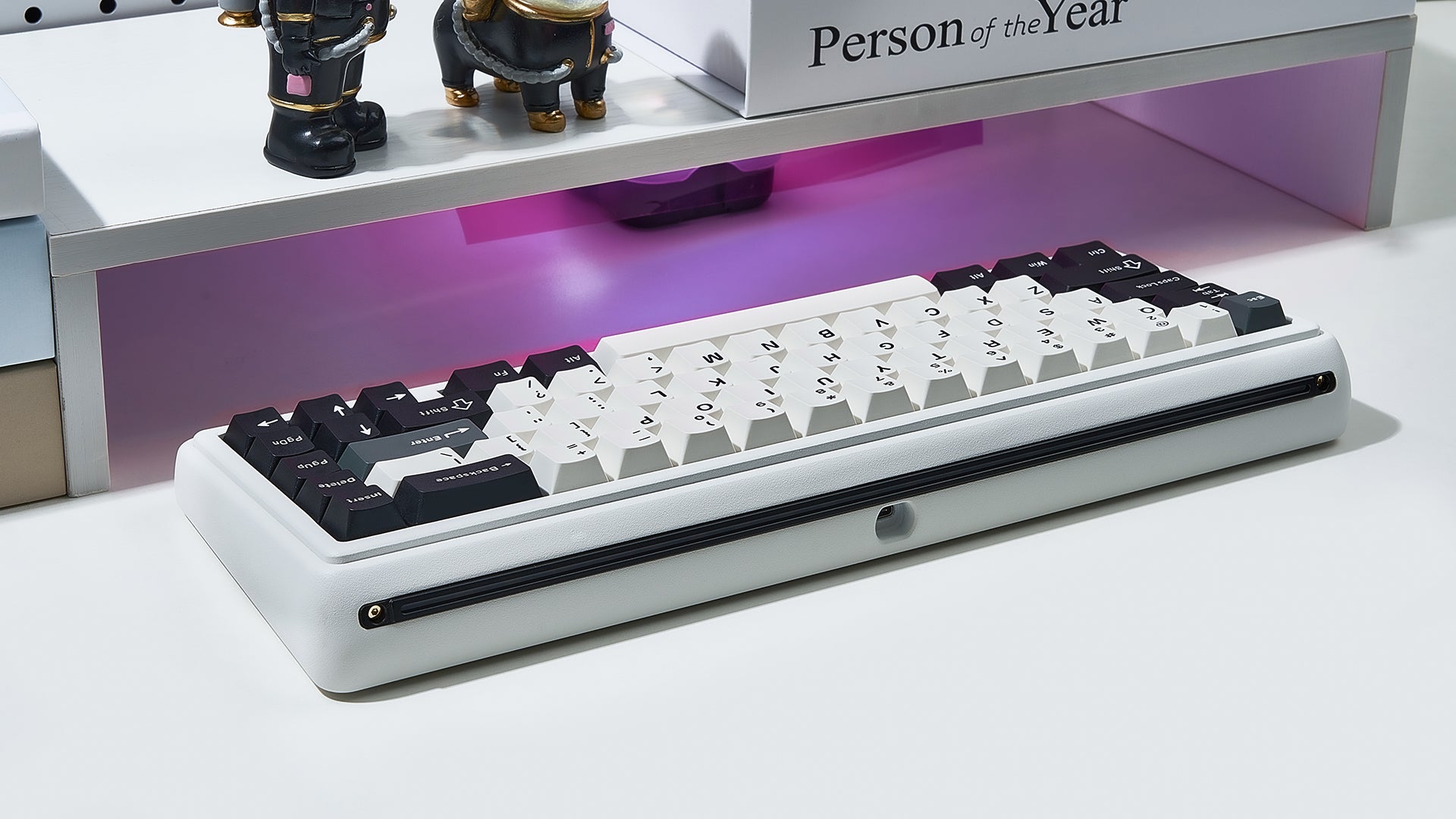

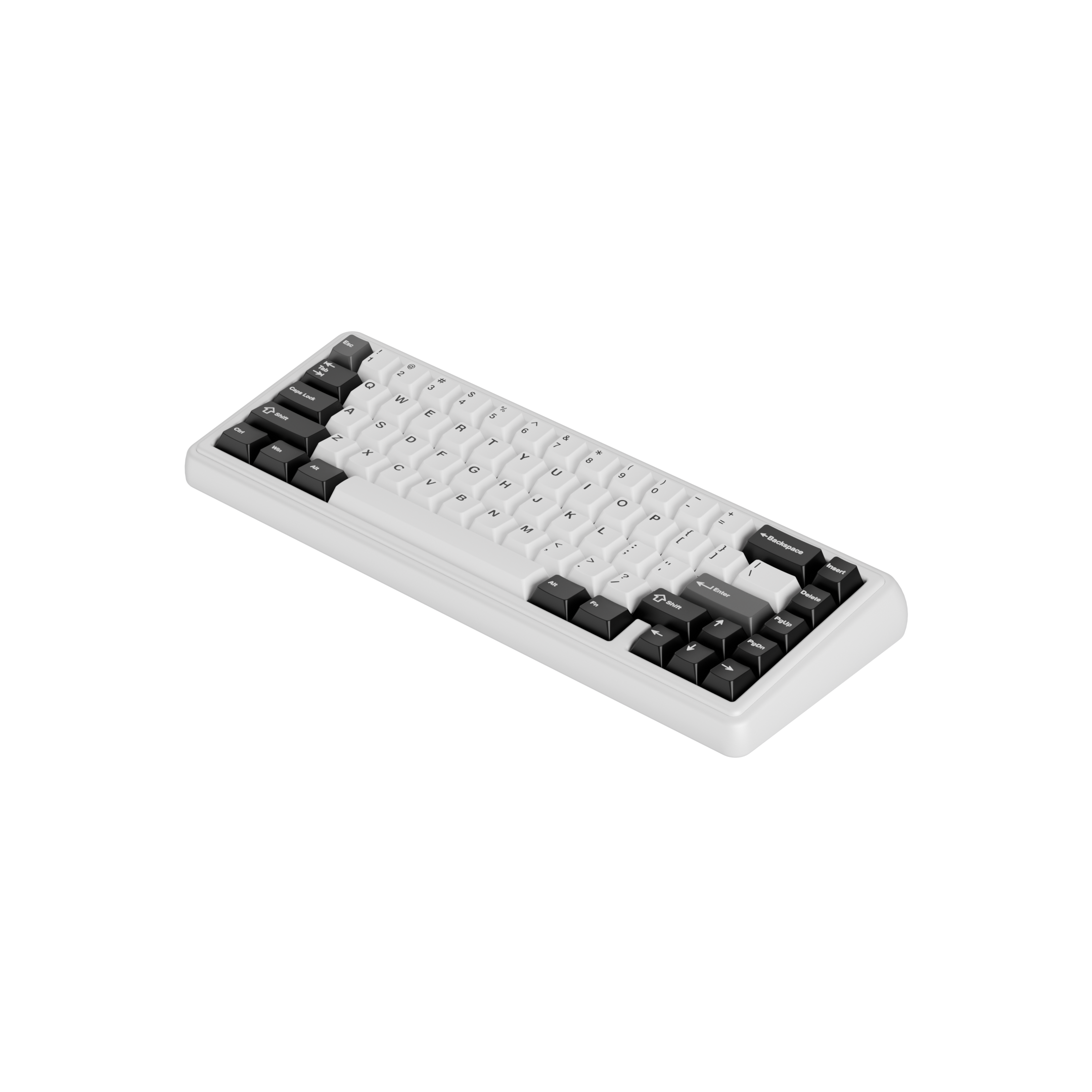

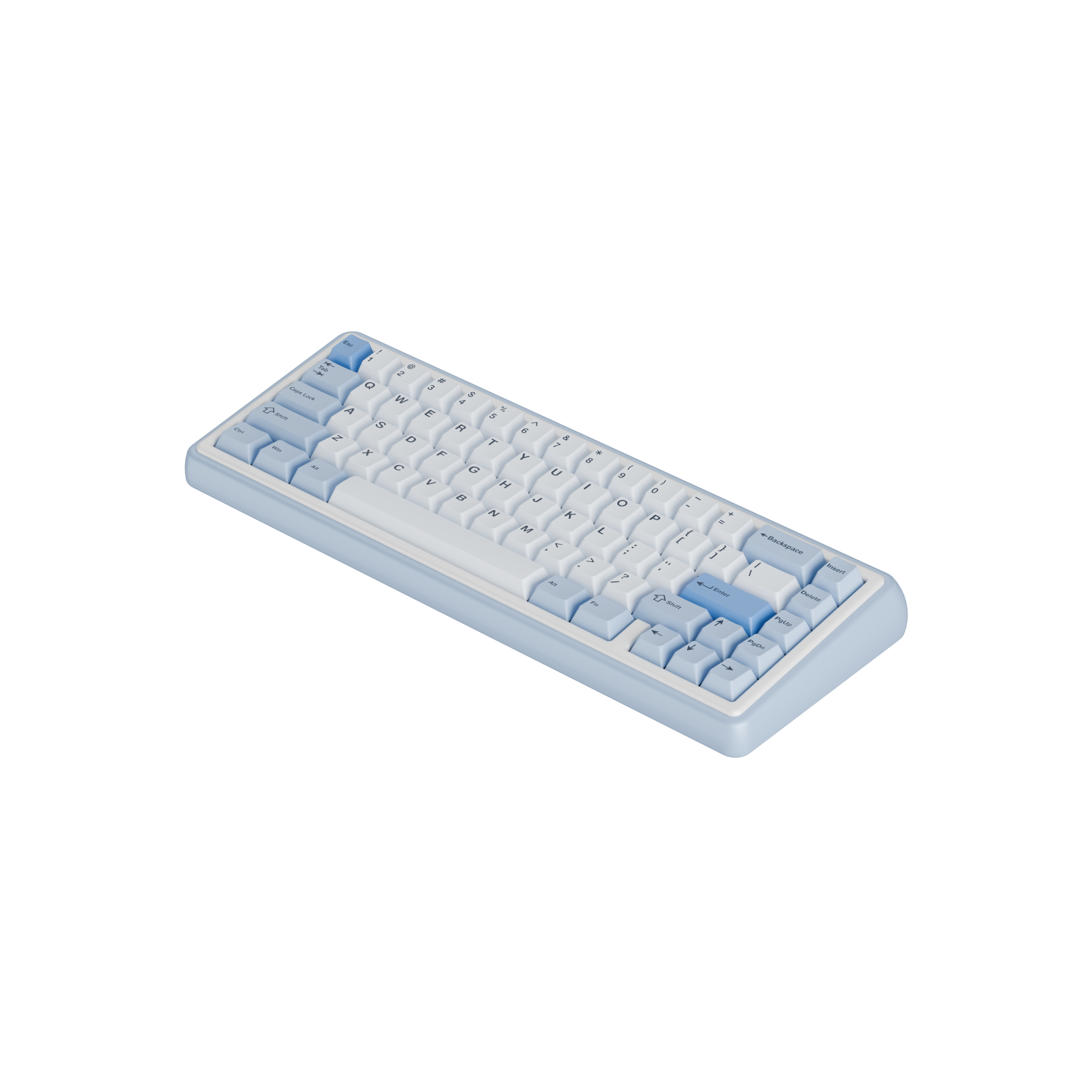

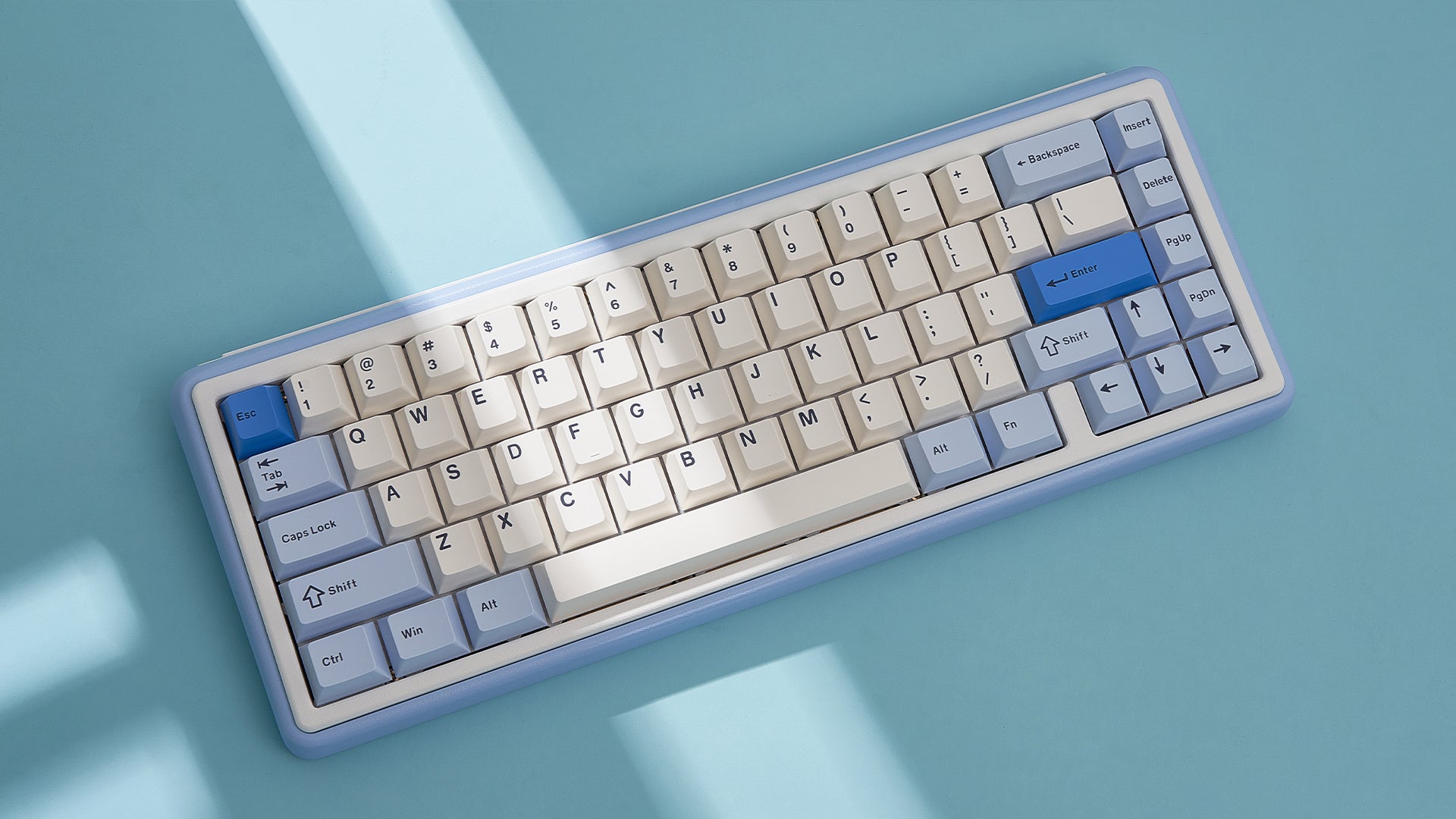

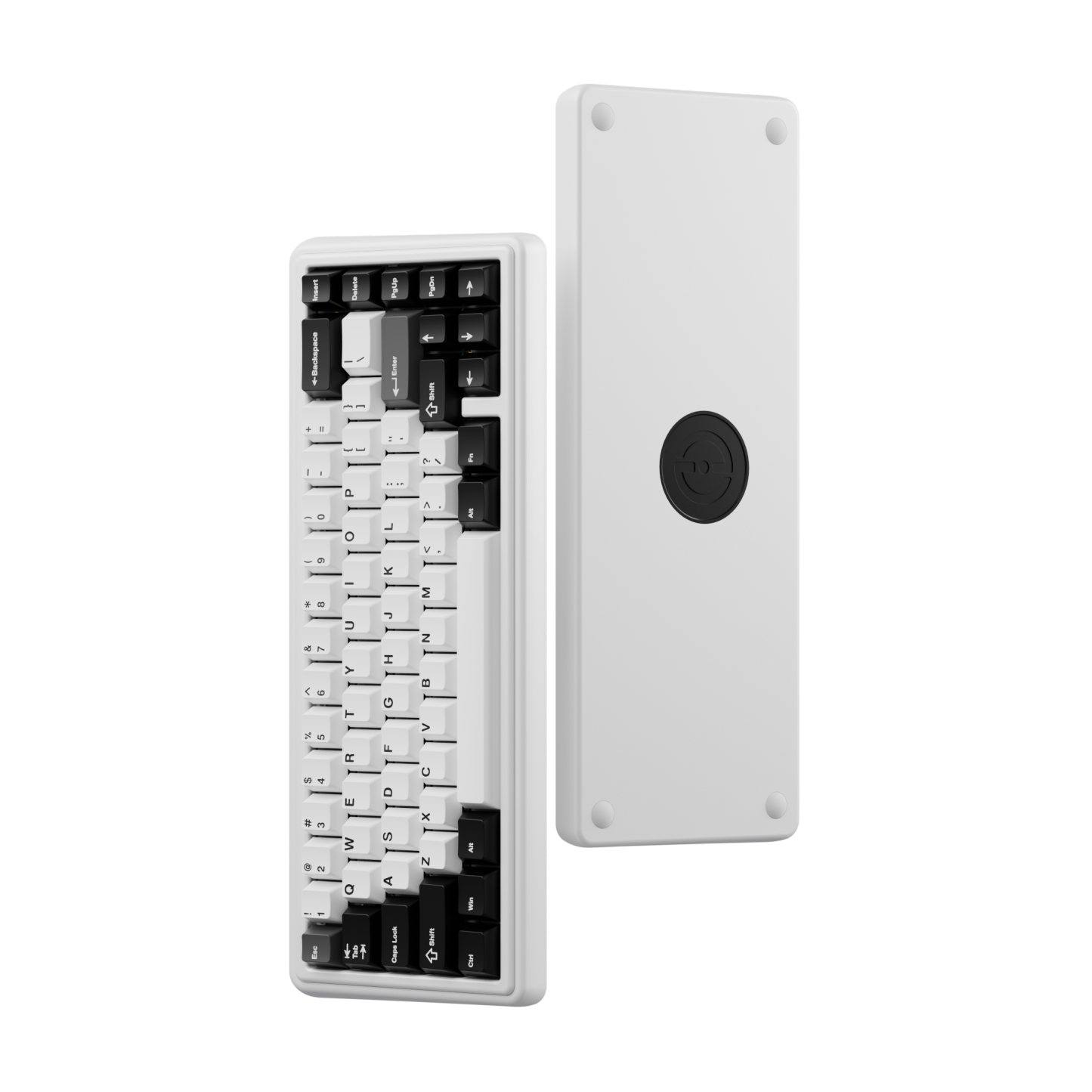

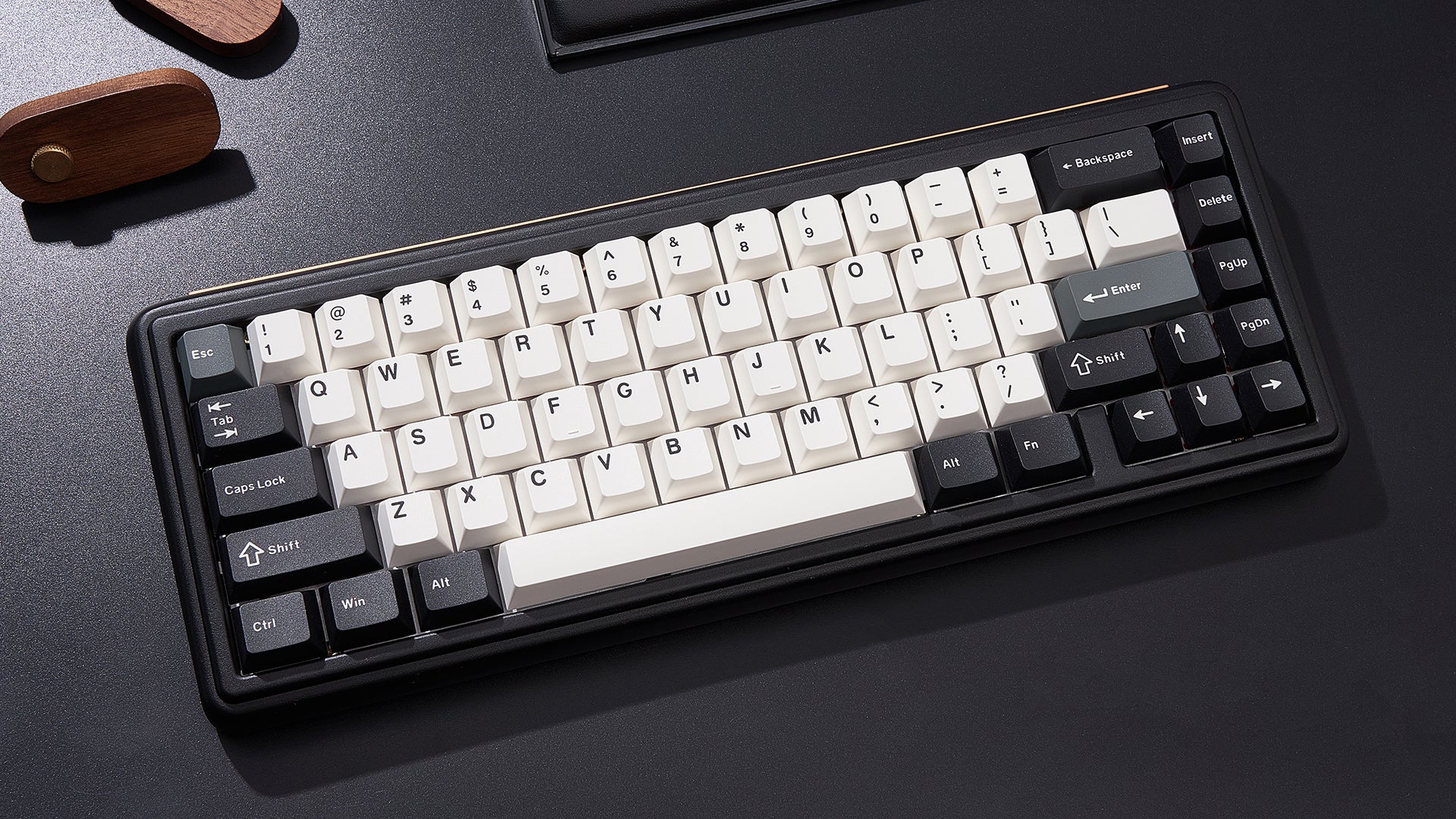

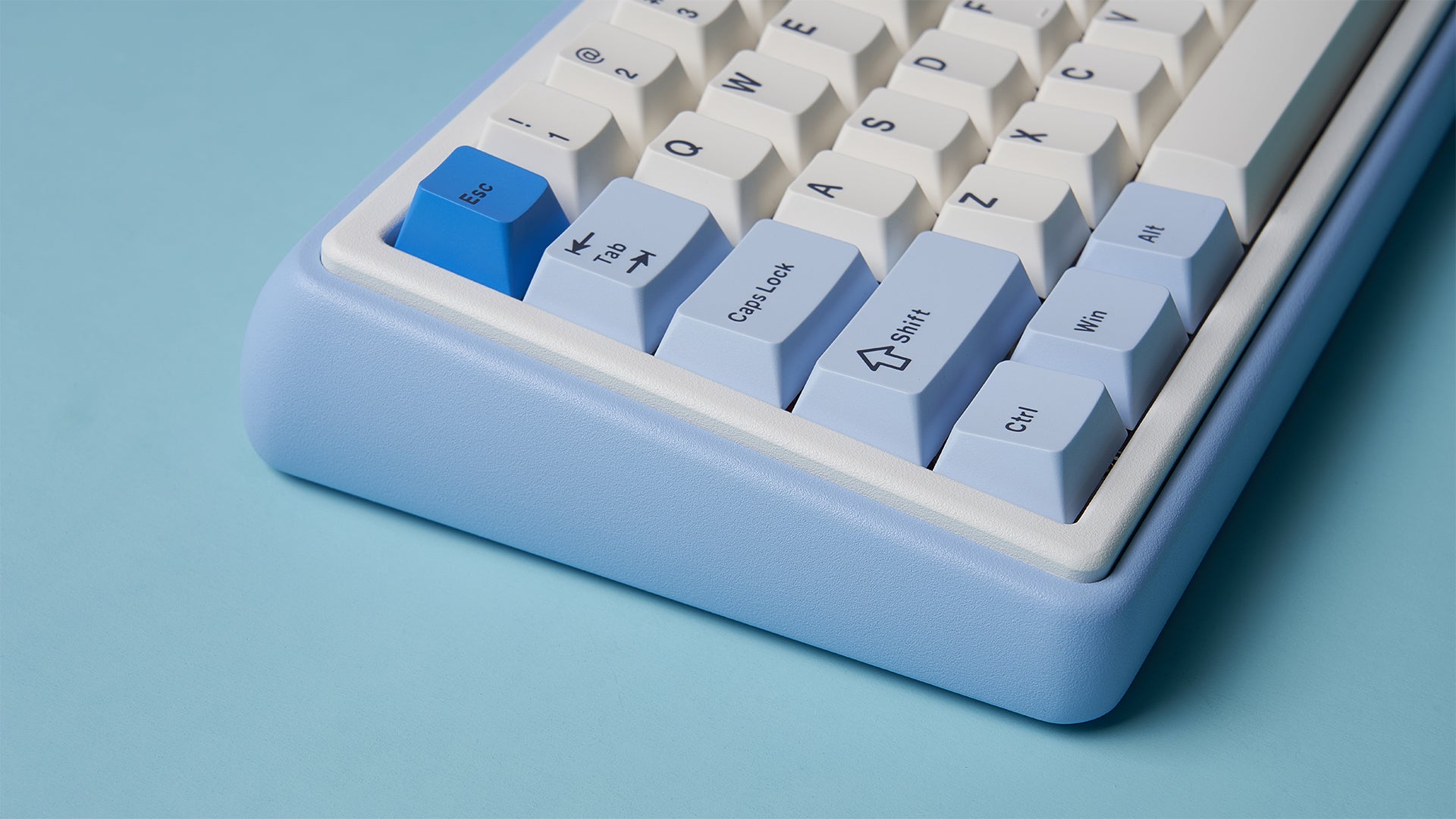

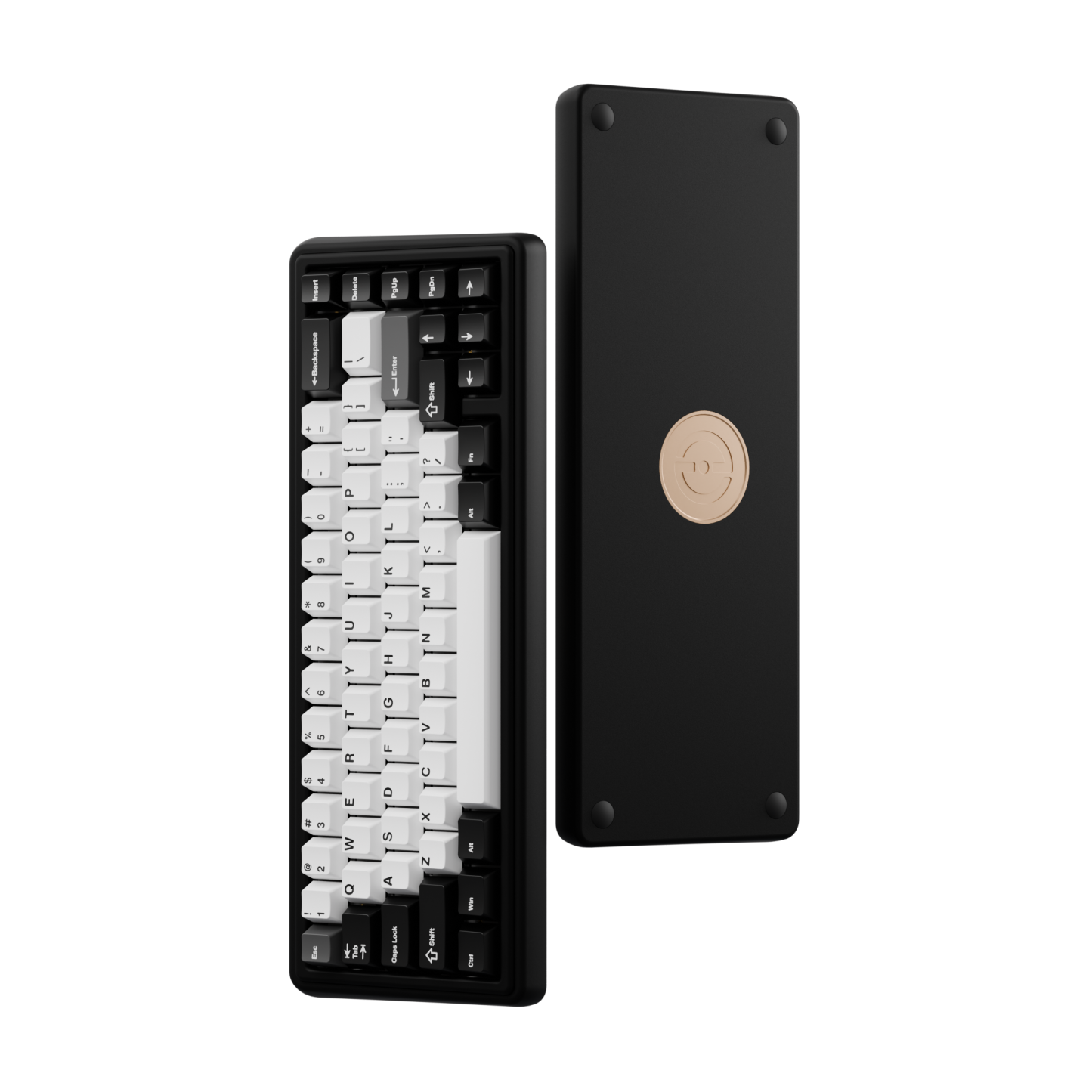

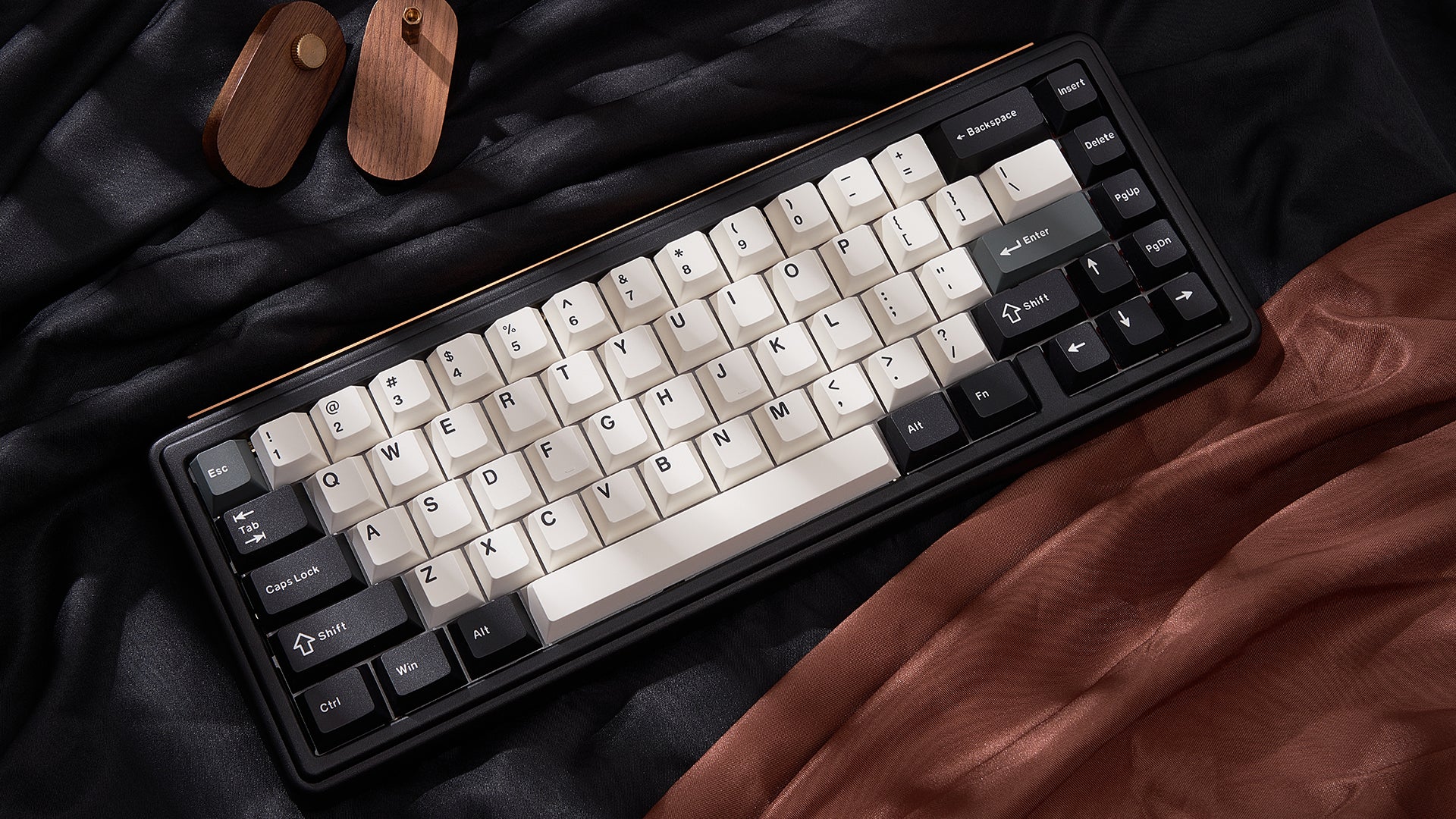

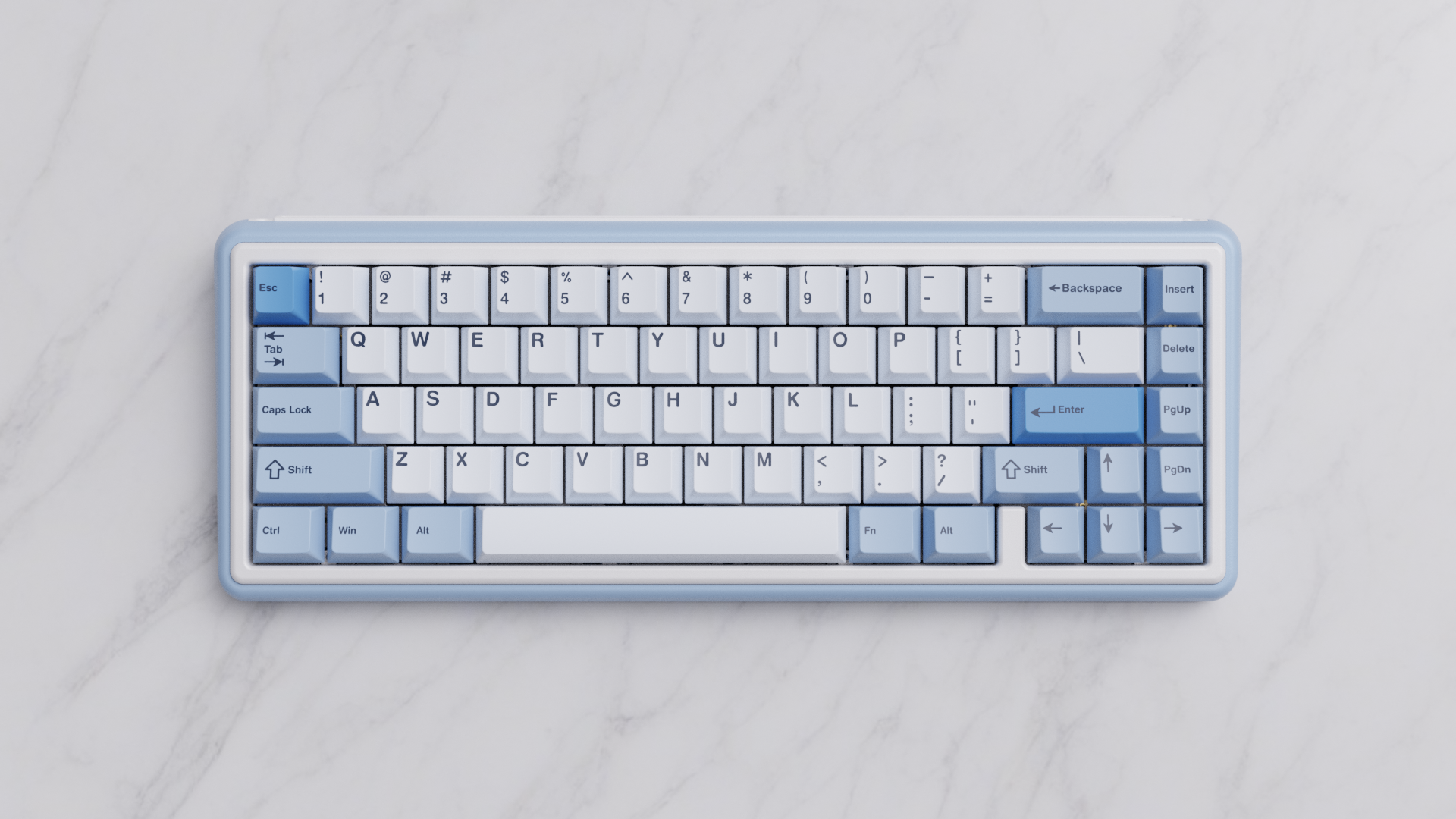

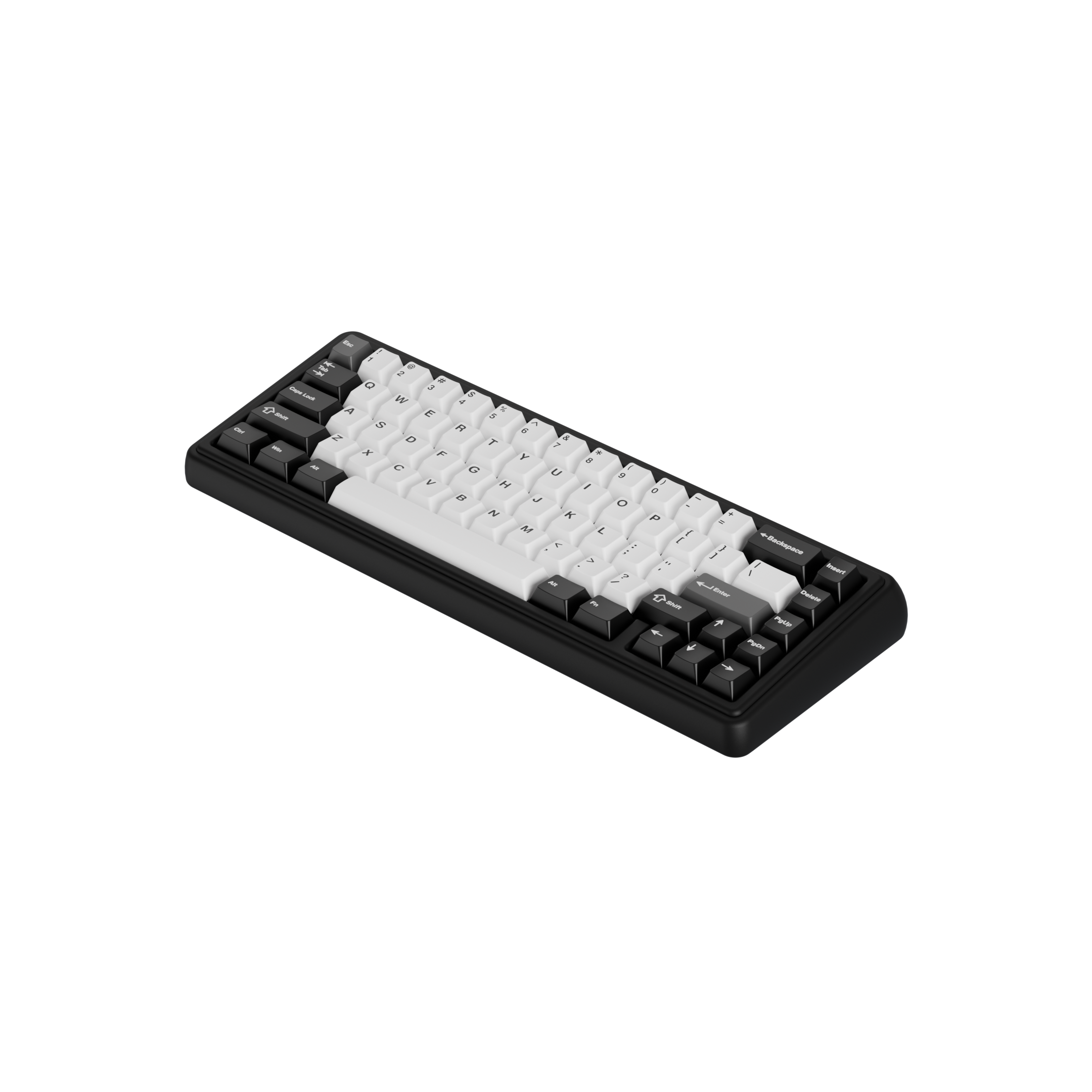

ND65 CS HE Keyboard

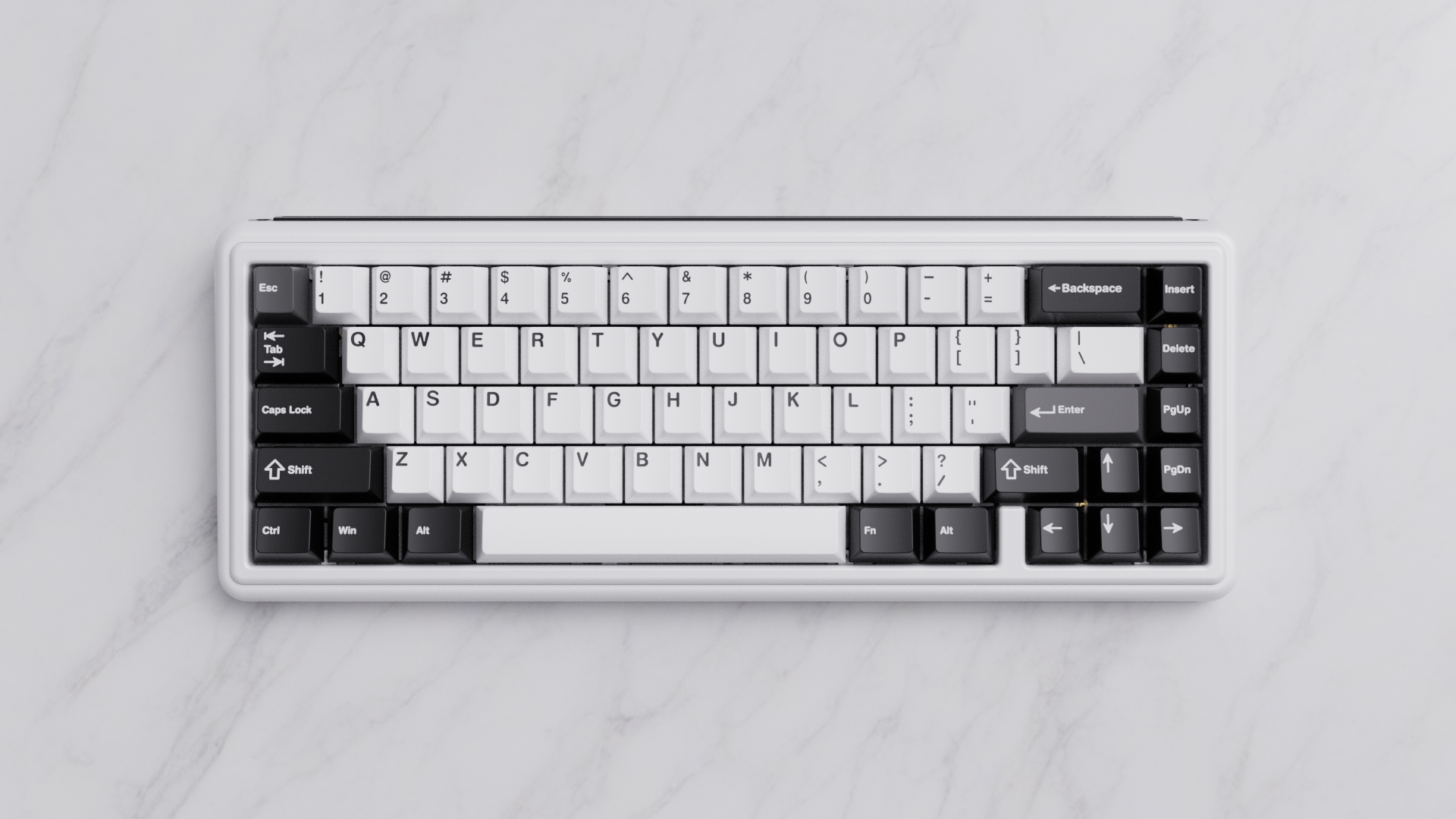

Keyboard Layout：65%
Finish Treatment：Electrostatic Coating
Typing Angle：6.5 Degree
Front Height：18.45mm

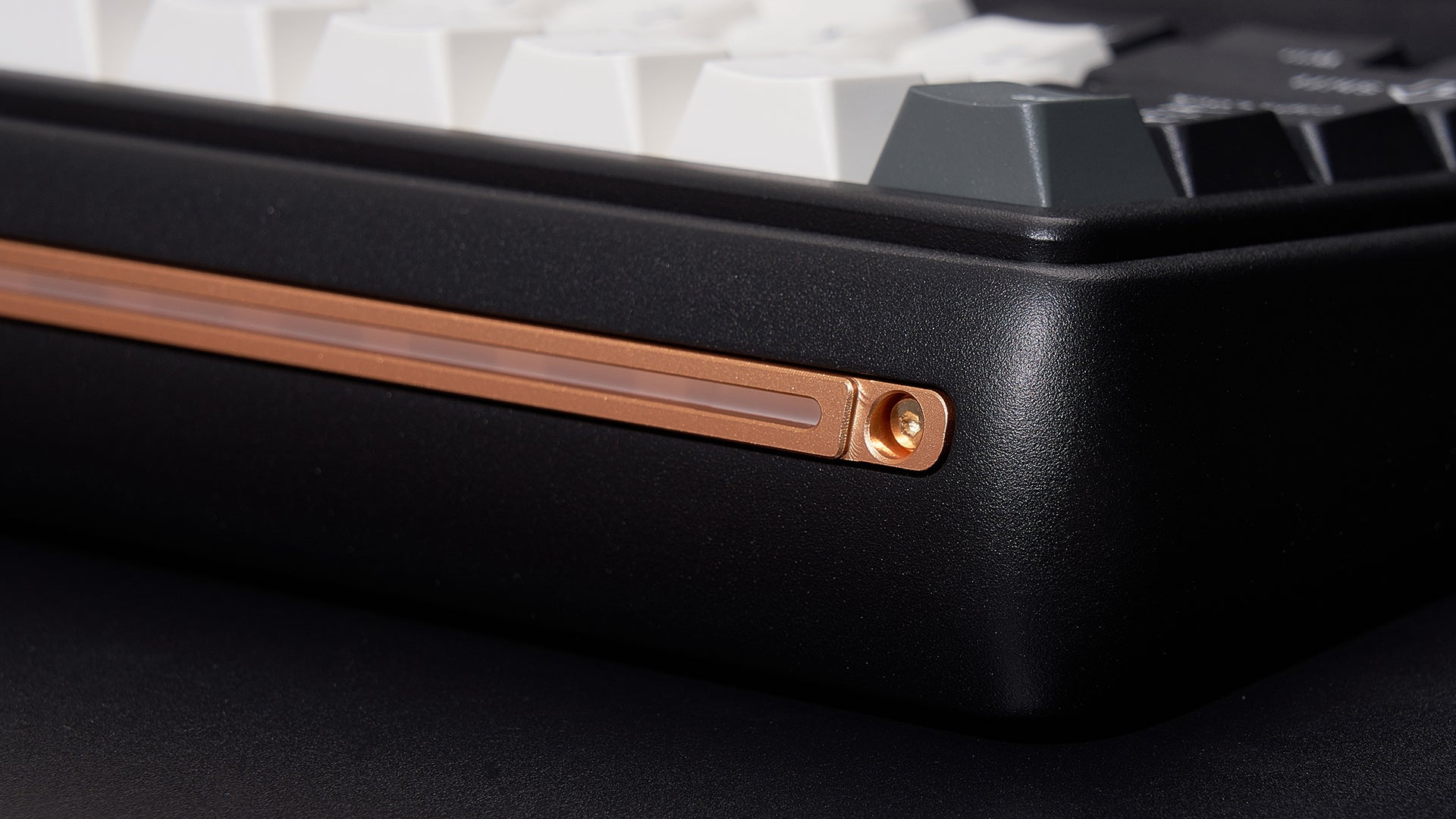

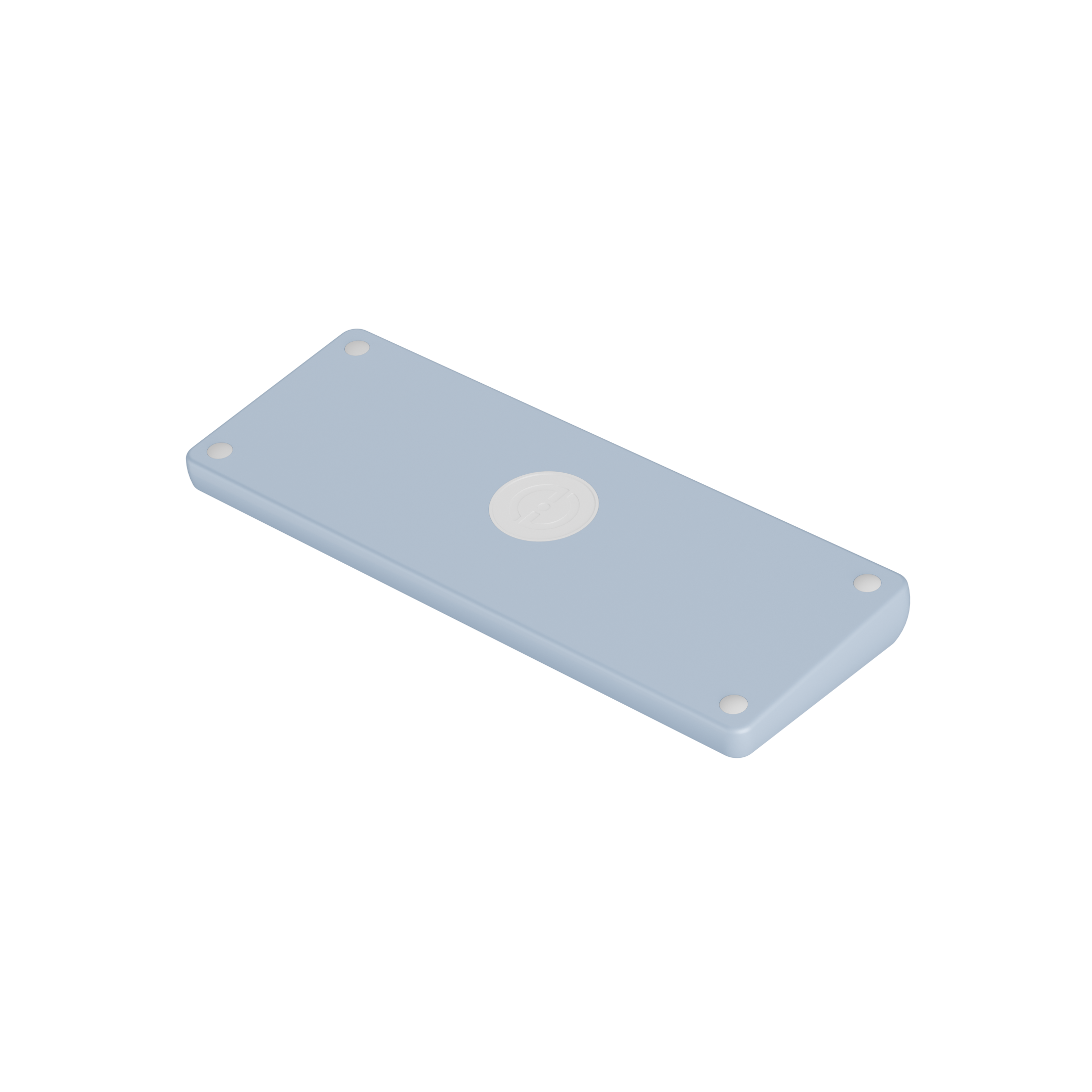

Case Material：Aluminium
PCB：Wired ,Non Flex-cut
Mounting Style：Gasket Mount
Switch Type：South Facing LED Switch
Stabilizer Type：Plate Mount
PCB Thickness：1.6mm
Battery Capacity：N/A
Default Plate: Aluminium
Supported Hot-swappable：Yes
Supported Layouts：ANSI
VIA/QMK Support ：N/A
Dimensions：335.6*125.8*34.3mm
Wired Polling Rate：1K
OS Compatibility：WINDOWS 10，WINDOWS 11，Linux，macOS

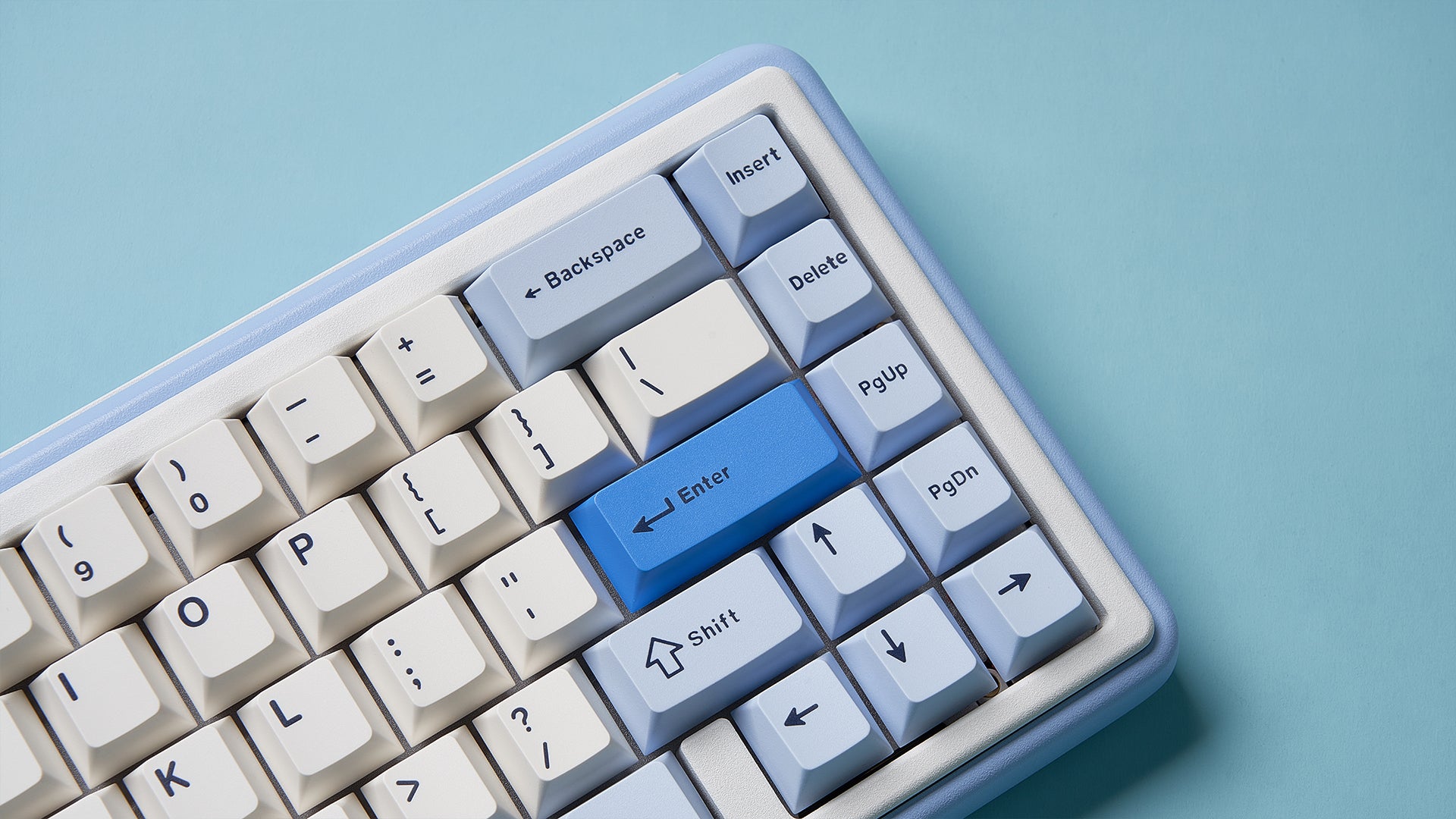

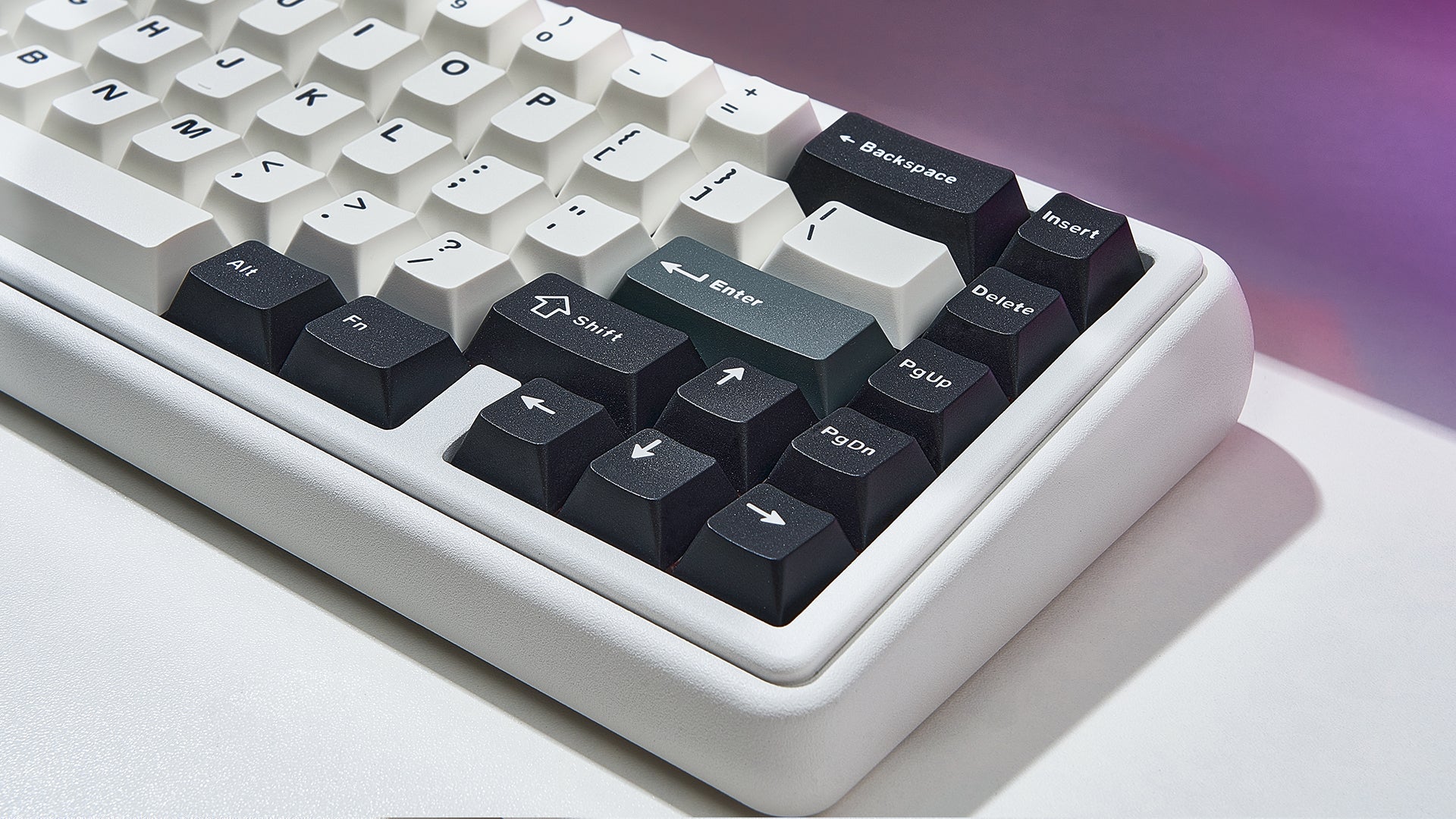

Keycap Material：PBT
Keycap Technology：Doubleshot
Keycap Profile：Cherry
Keys QTY：67keys

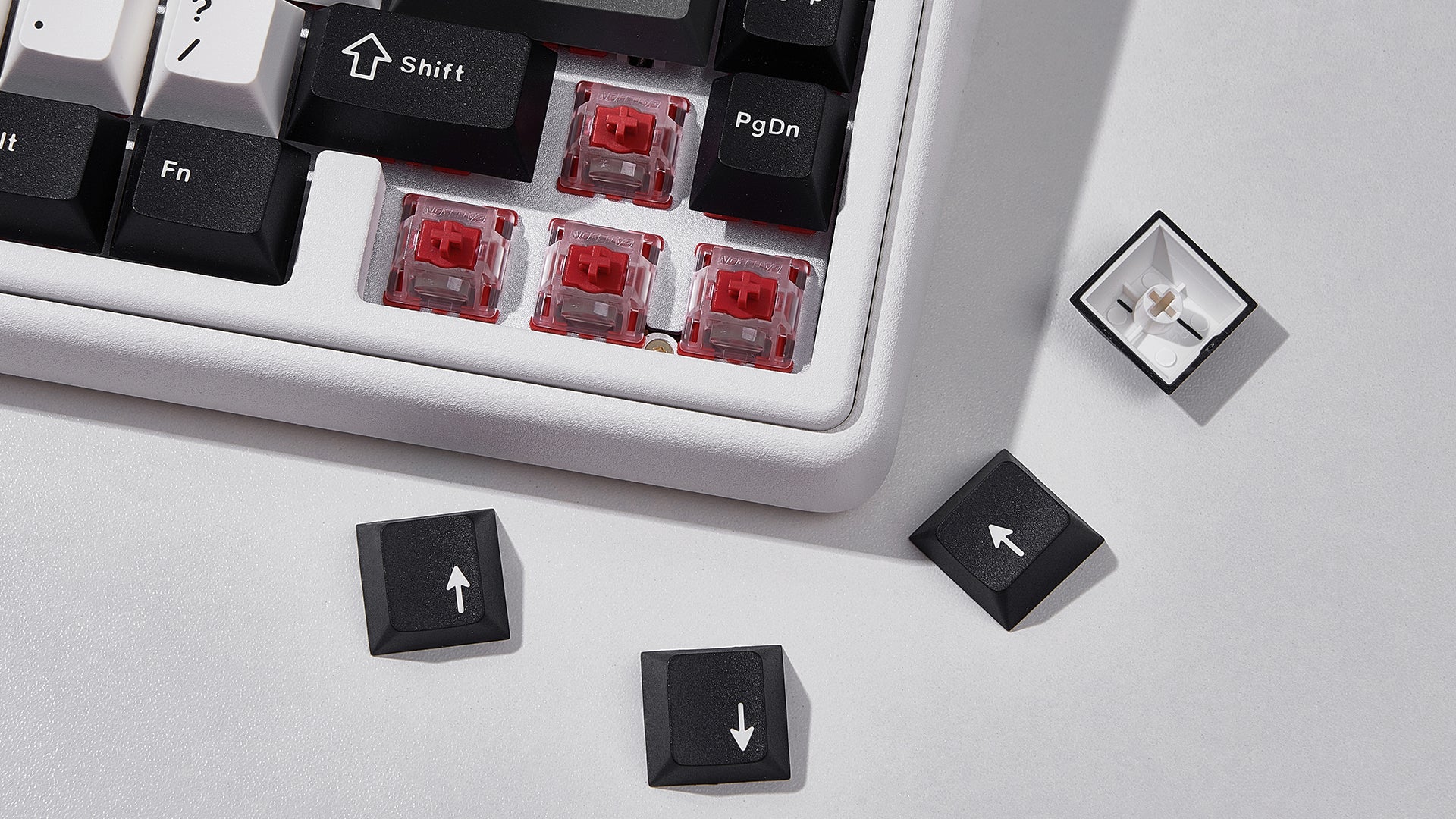

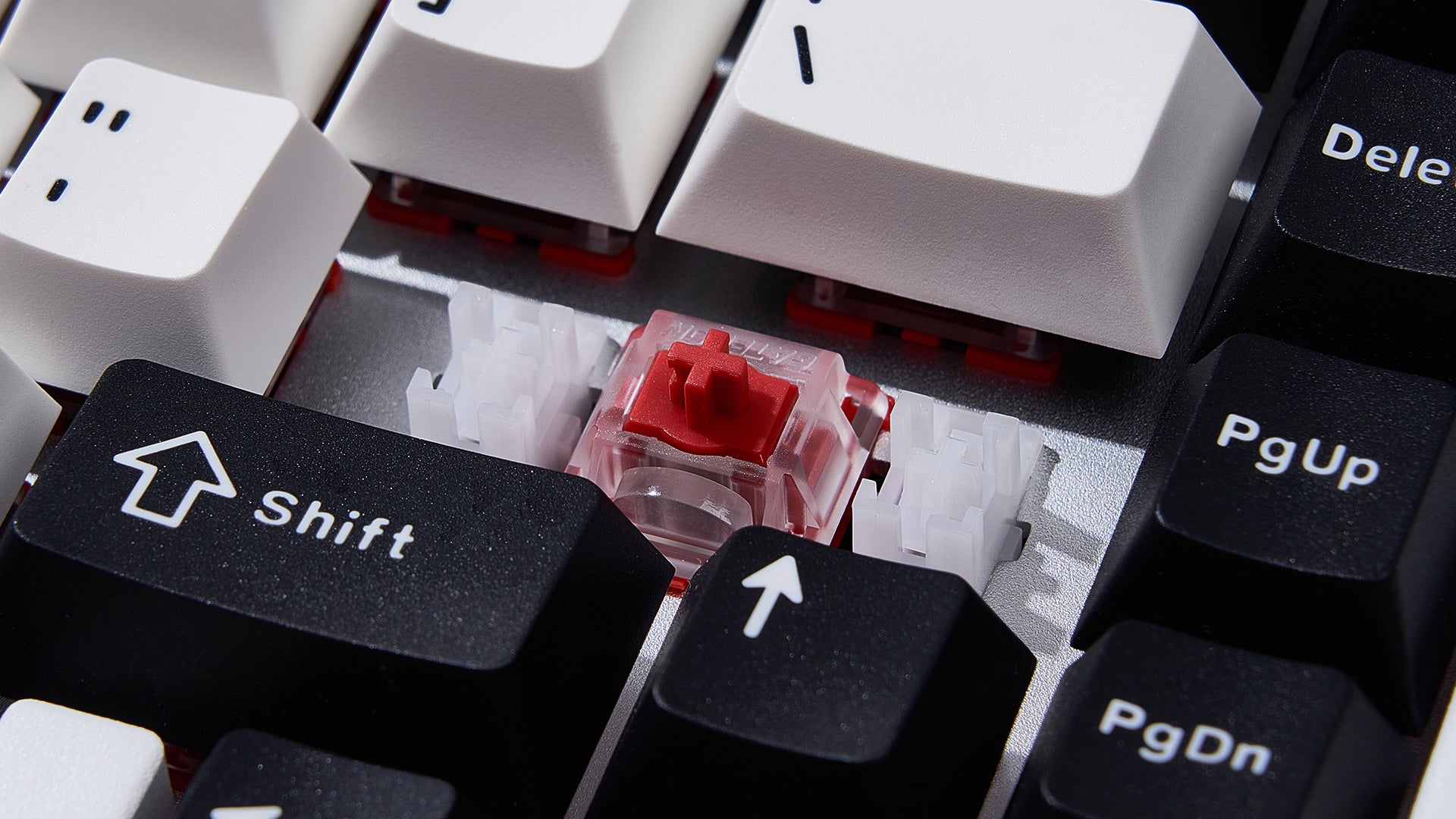

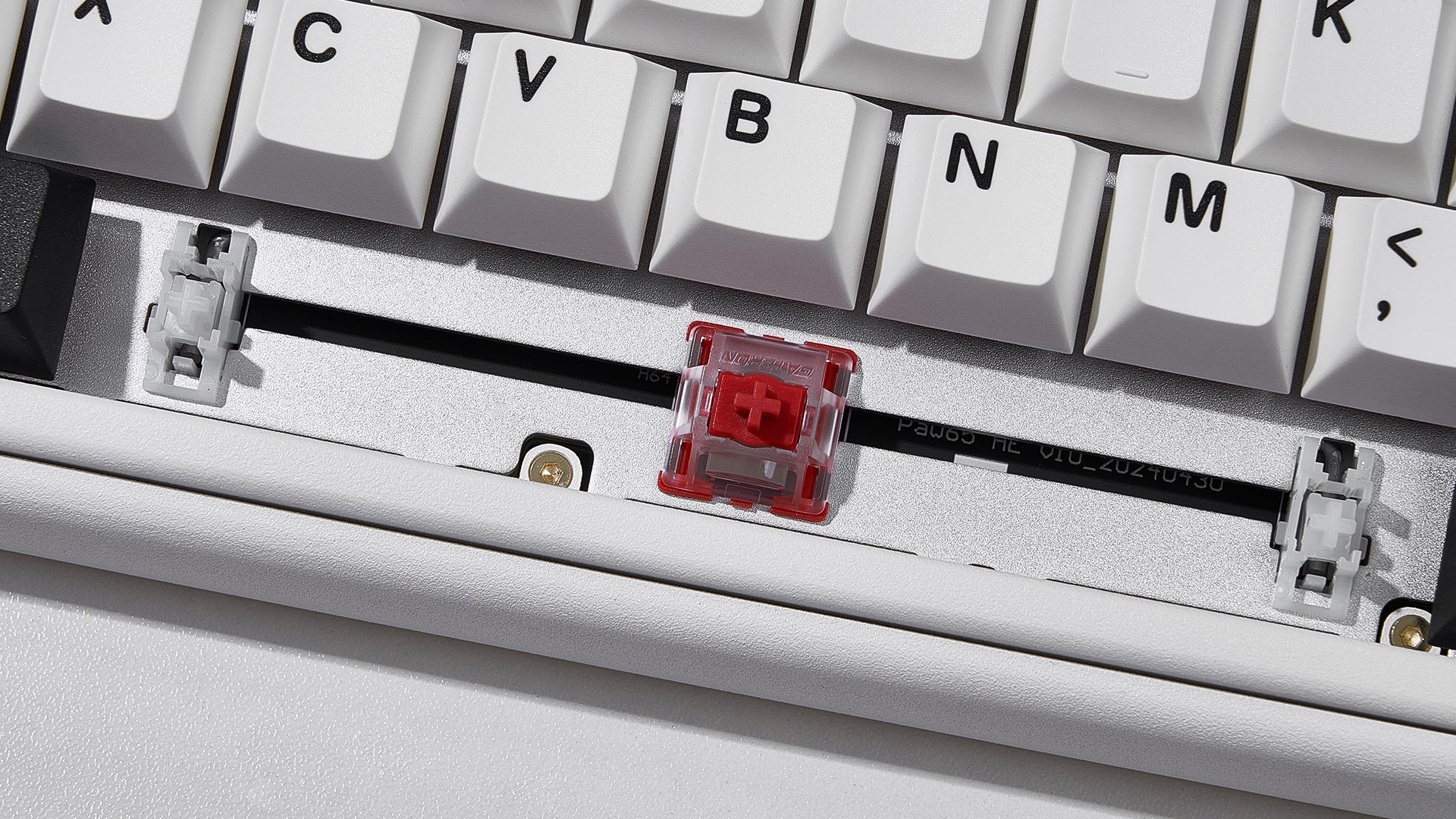

Switch Specifications

Manufacturer：Gateron
Switch Type：Magnetic Switches
Top Housing Material：PC
Bottom Housing Material：PC
Stem Material：PC
Total Travel：4.0±0.2mm
Pre-Travel：Trigger stroke can be freely defined
Actuation Force：Trigger stroke can be freely defined
Preload：30±10gf
Bottom-out Force：50±10gf
Tactile Force：N/A
Tactile Travel：N/A
Lifespan：150 million keystrokes
Spring：Stainless steel
Lubing：Factory lubed
Return rate：1KHz

Highlights

• Tab conteDual-rail structure for stability.
• Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
• Extending the stem for better switch stability.
• Integrated spotlight lens design, enhancing light guidance.
• Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!
